Khoom Description

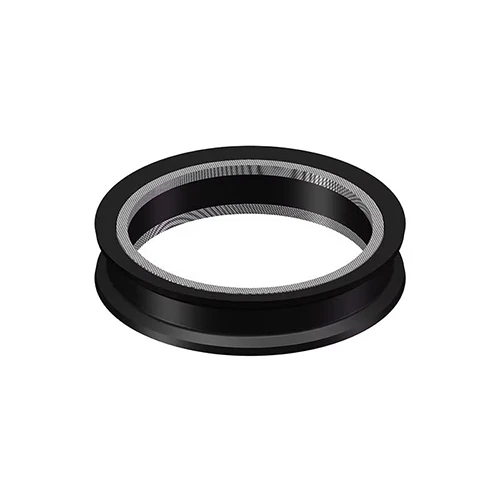

P-seal rau casing thiab tubing yog tsim los ntawm ib tug elastomer nrog thaub qab rings rau anti-extrusion. Energized los ntawm kev txhaj tshuaj sealant, nws yog lub foob zoo li qub uas yog siv los kaw qhov ntxhib casing thiab tubing.
Roj thiab Roj Sealing Solutions
Tus qauv P-seal yog ib daim ntawv molded foob siv lub molded-in anti-extrusion ntaus ntawv. Qhov kev tsim no txhim kho kev sib dhos los ntawm kev tshem tawm cov xoob los tiv thaiv extrusion khoom siv hauv lwm cov qauv tsim.
P-seal yog ntsia rau hauv qhov chaw sib khi qis ntawm lub casing spool lossis tubing taub hau. Nws yog siv los muab kev nyab xeeb zoo dua qub ntawm lub casing annulus thiab flange kev twb kev txuas ntawm lub taub hau casing, casing spool, los yog tubing taub hau. Qee zaum, nws tseem tuaj yeem muab kev sib khi tshwj xeeb rau cov khoom tawg.
Qhov zoo ntawm P-Seal rau Casing thiab Tubing
- Bidirectional sealing muaj peev xwm: P-Seal muaj peev xwm muab kev sib khi hauv ob qho kev qhia, uas yog qhov zoo dua los tiv thaiv kev tawm.
- Kho kom haum rau qhov kub thiab txias: P-Seal yog tsim los tiv thaiv qhov kub siab thiab kub kub ib puag ncig hauv cov roj teb, uas tso cai rau nws kom muaj kev sib khi zoo hauv ntau qhov chaw ua haujlwm.
- Sealing loj kam rau ua: Haum rau qhov loj tolerances uas feem ntau pom nyob rau hauv cov qauv roj zoo casings, nws muaj peev xwm muab txhim khu kev qha sealing txawm tias lub casing nto tsis yog kiag li tiaj tus.
- Customization xaiv: P-Seal tuaj yeem hloov kho raws li cov kev xav tau tshwj xeeb ntawm cov neeg siv khoom, muab cov qauv thiab kev cai-loj xaiv kom tau raws li cov kev xav tau tshwj xeeb ntawm cov neeg siv khoom sib txawv.
| Cov xwm txheej ua haujlwm | ||
| Qhov kub thiab txias | Siab | Nruab nrab |
| -46 degree ~ 121 degree | Tsawg dua lossis sib npaug li 20000 PSI | Roj, dej, Gas, H2S, CO2, thiab lwm yam |
Cov Ntaub Ntawv Cov Ntaub Ntawv Cov Ntaub Ntawv
| HWV 90 | Khoom | Chav tsev | Txoj Kev Xeem | Test Parameter | Tus nqi |
| Hardness | IRHD | ASTM D 1415, ASTM D 1415, ASTM D 1415 | 90 | ||
| Tensile zog | MPa | ASTM D 412, ASTM D 412 | 18.5 | ||
| Qhov kawg Elongation | % | ASTM D 412, ASTM D 412 | 105 | ||
| Specific Gravity | g/cm3 | ASTM D 297 Cov | 1.38 | ||
| Compression Teeb | % | ASTM D 395 B | 22h / 150 degree | 23 | |
| Tsawg temp. tsis kam | degree | ASTM D 2137 Kev txiav txim siab | brittleness tsis muaj kab nrib pleb tom qab 3 feeb. ntawm |
-40 | |
| Tsawg temp. tsis kam | degree | ASTM D 1329 | TR 10 | -23.1 |
